Výstaviště Tram Stop
The first tram stop in the Czech Republic made of digital concrete print was designed and realized as a utilitarian object with aesthetic overlap into the art district of Prague's Holešovice.
Client
City of Prague
Design
So Concrete
Completion
2022
Material
UHPC
Location
Výstaviště Tram Stop, Prague
Collaboration
Stráský, Hustý a partneři – Structural Engineering

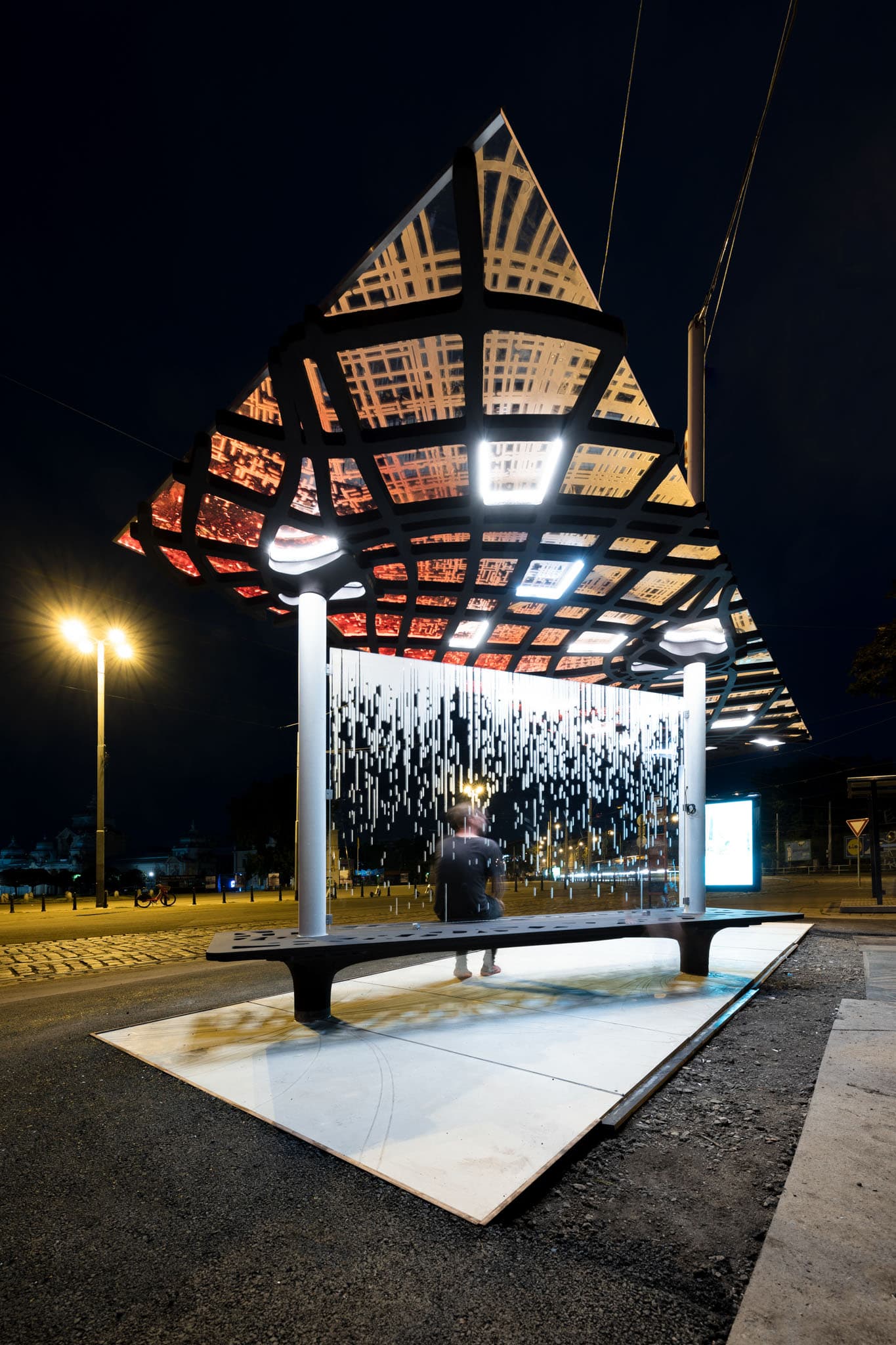

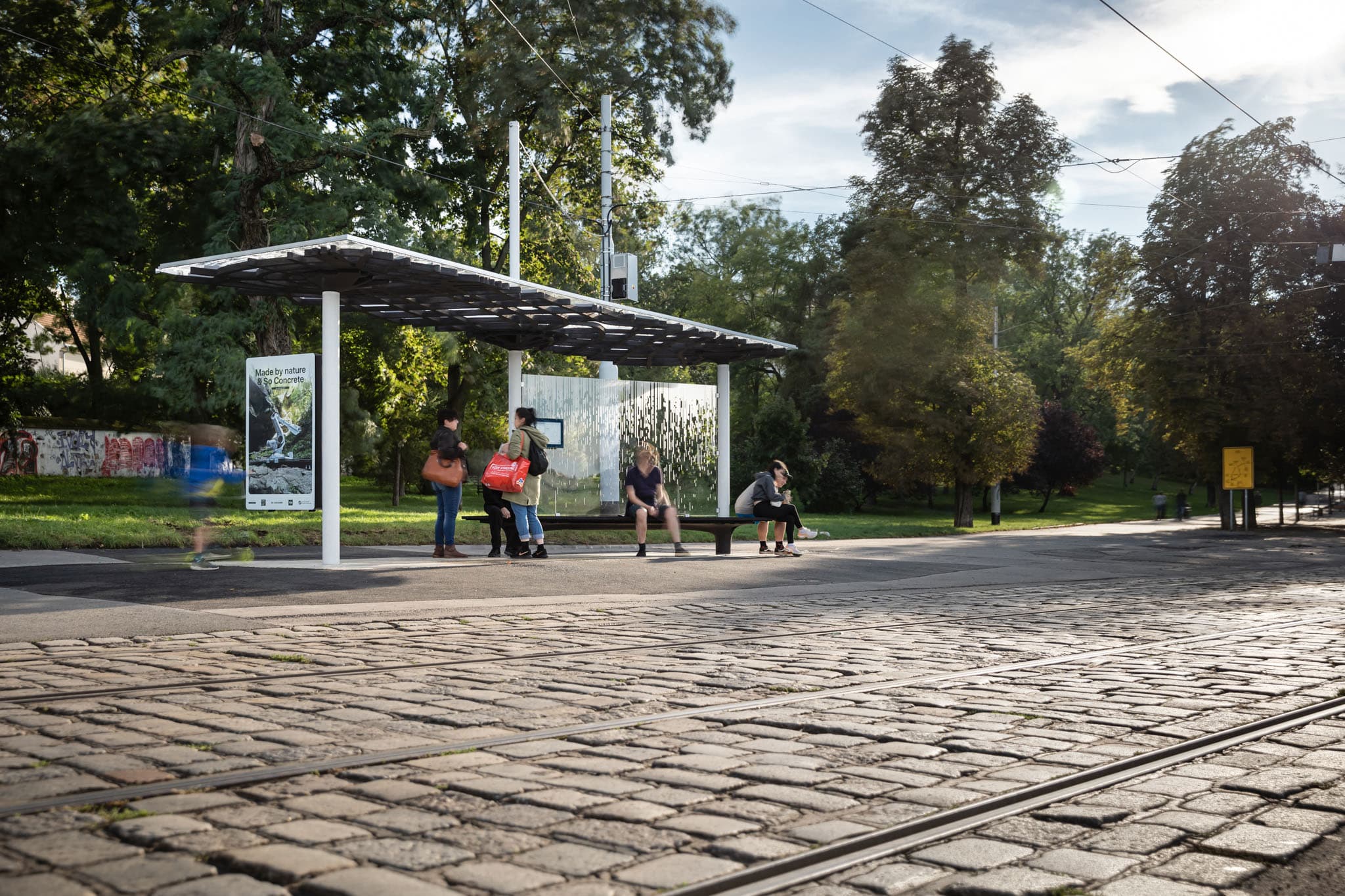

The first tram stop in the Czech Republic made using digital concrete printing was designed and realized as a utilitarian structure with an aesthetic dimension that integrates into the art district of Prague’s Holešovice.

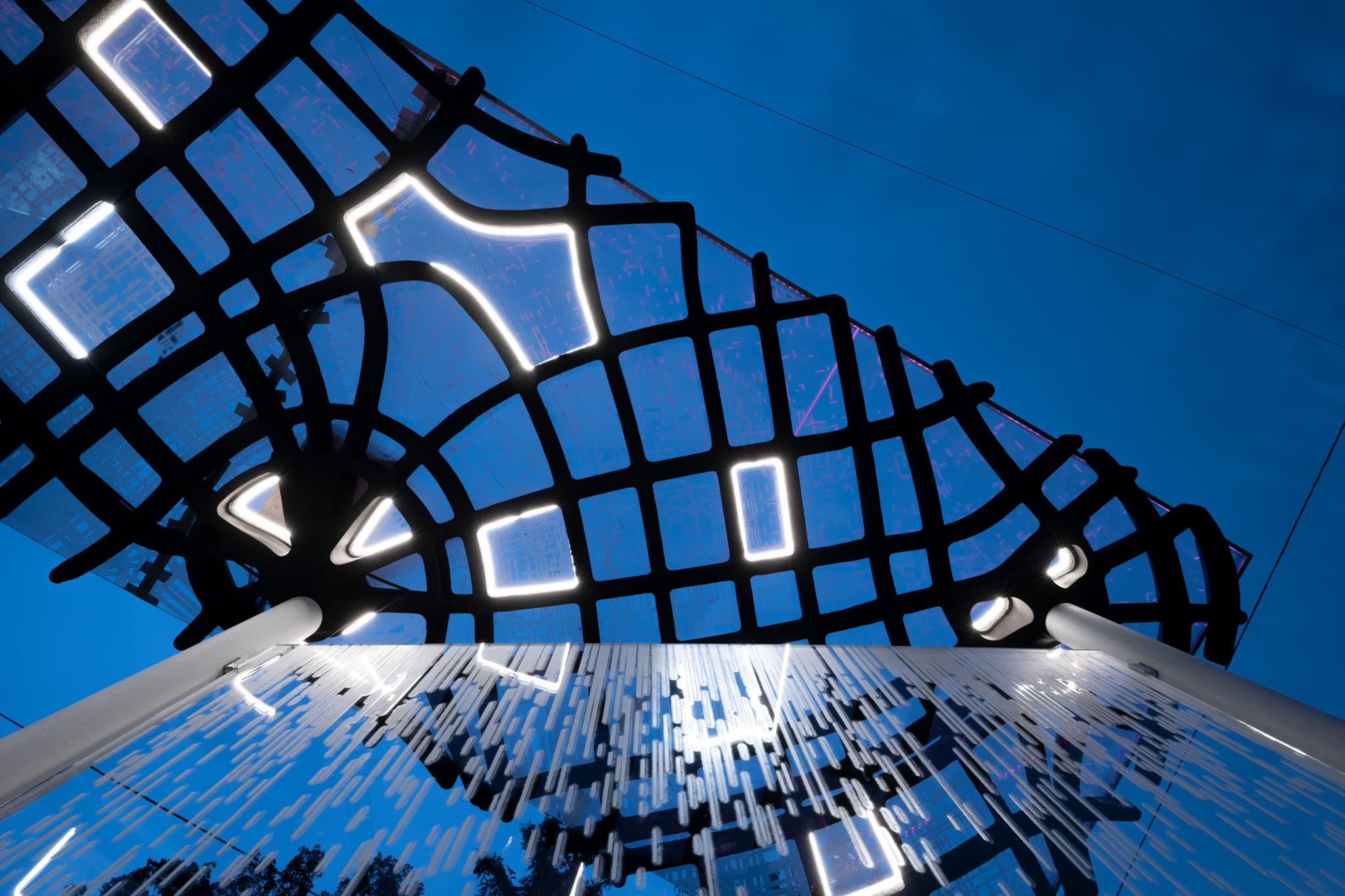

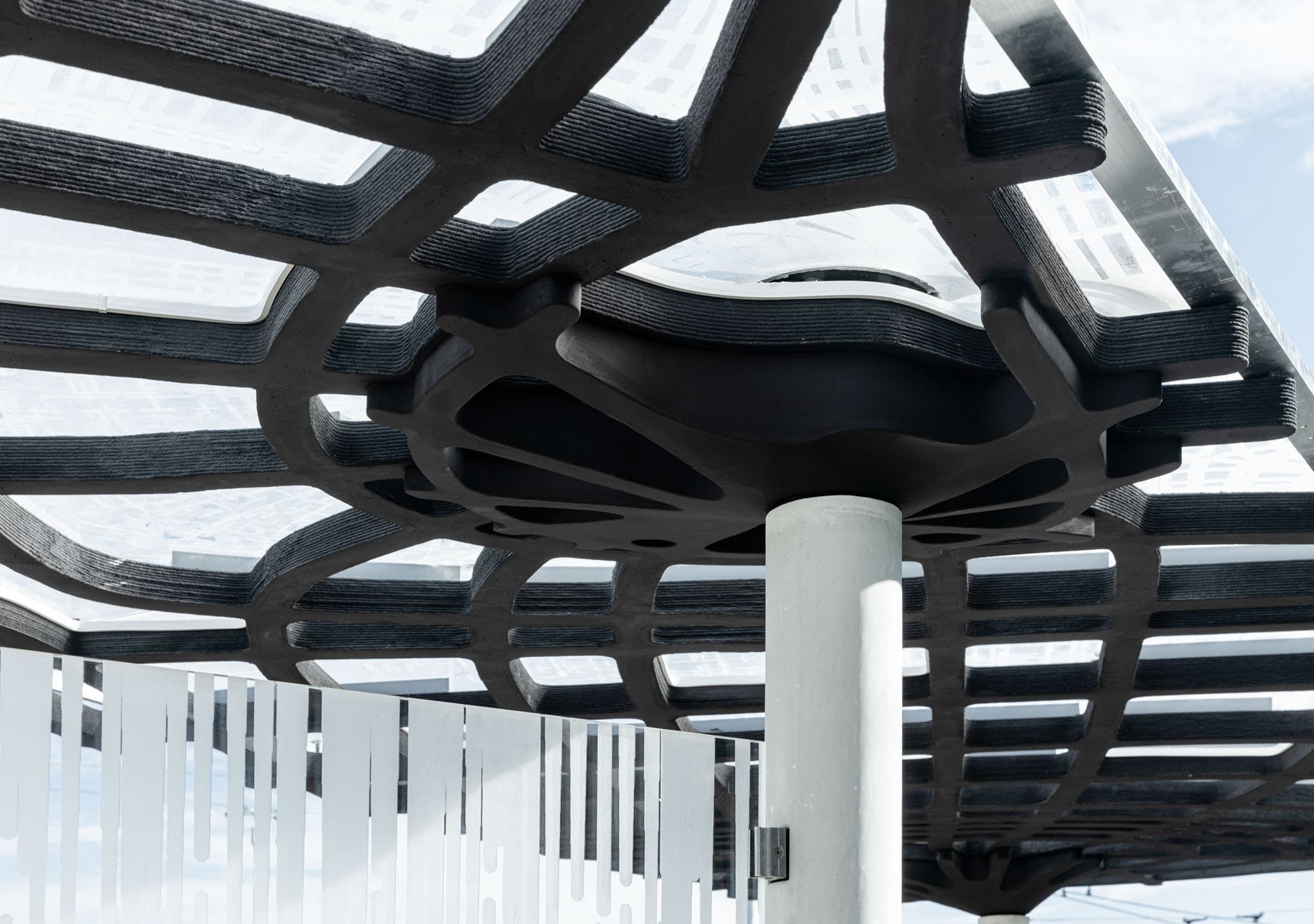

The parametric design of the tram stop utilizes the efficiency of natural solutions, using topology optimization to reduce material usage by up to 60% while maintaining aesthetic and structural requirements. The resulting ribbed structure reflects the real behavior of the construction under load, directly visualizing the forces at play. The finely perforated structure withstands the same load as a solid concrete slab.

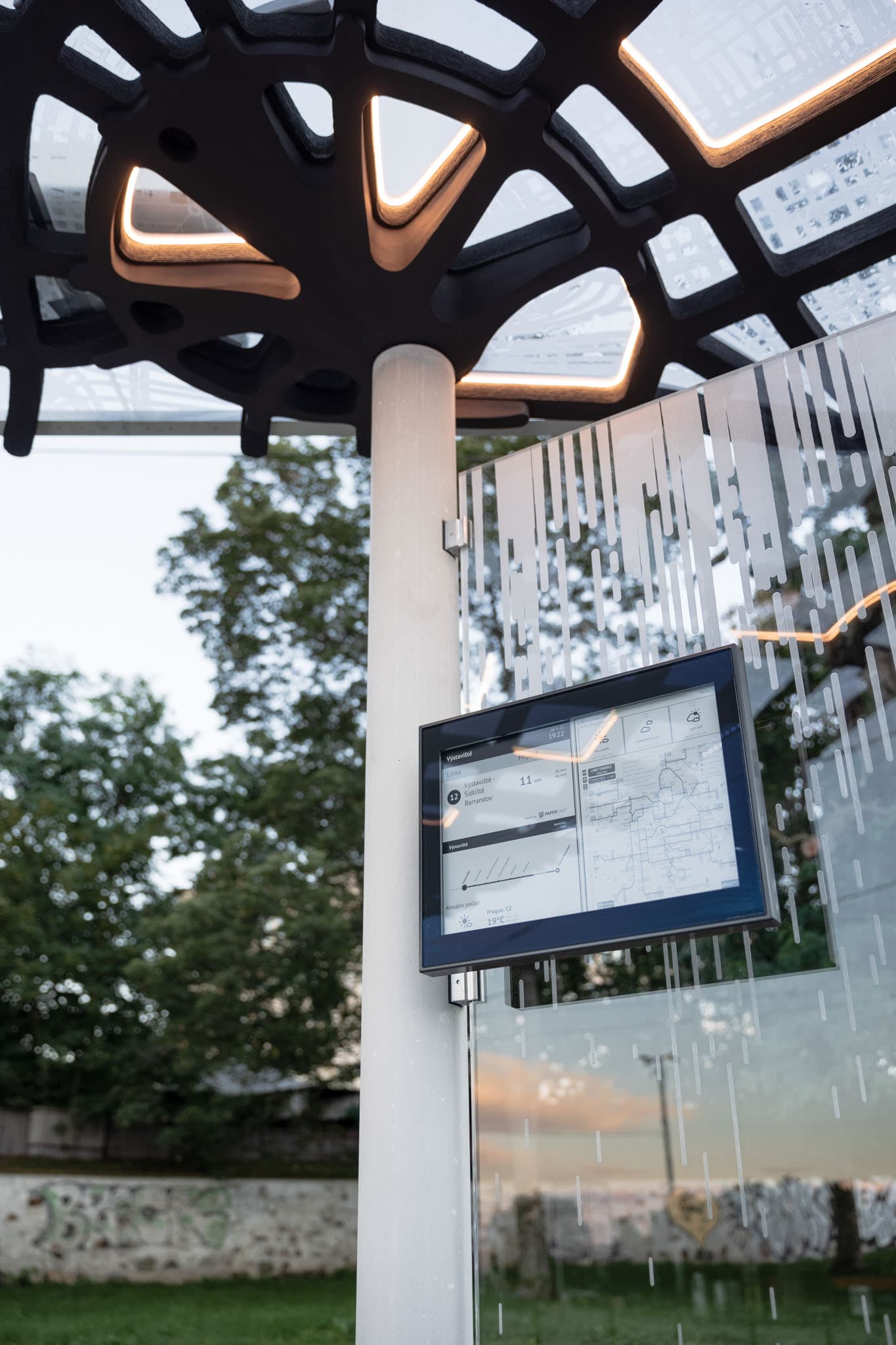

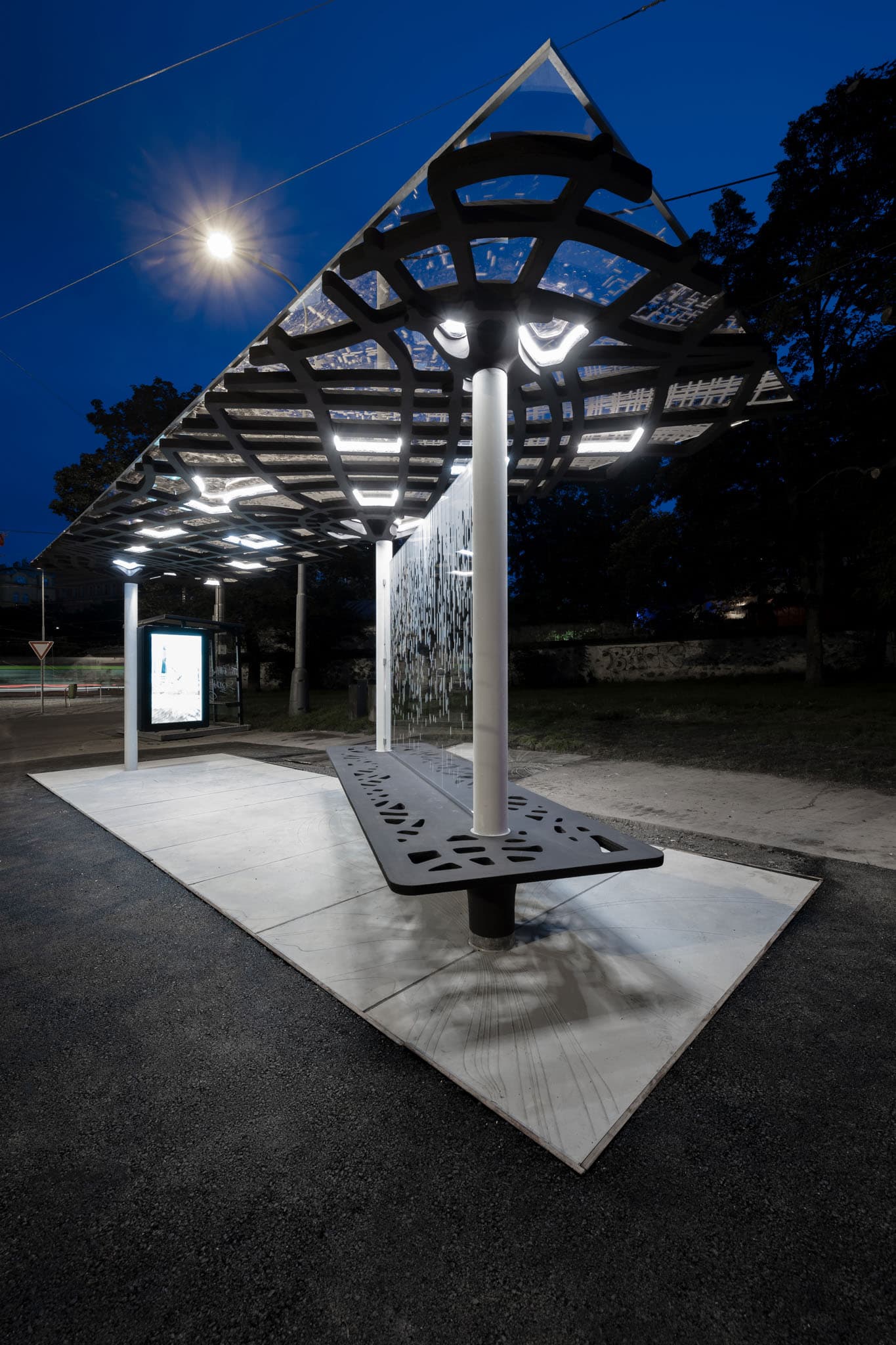

The tram stop consists of multiple structural segments, each employing different types of concrete and 3D printing approaches. The roof and passenger bench were produced using robotic 3D printing. The material was selected based on function and structural requirements—while the roof contains fiber reinforcement, the seating does not require it. In producing the column capitals, a robot first milled and printed the molds, into which the final capitals were subsequently printed.
